With strong technical force, various professional and technical personnel, we can design and manufacture a full range of valves and to support customers with different solution under different working condition.

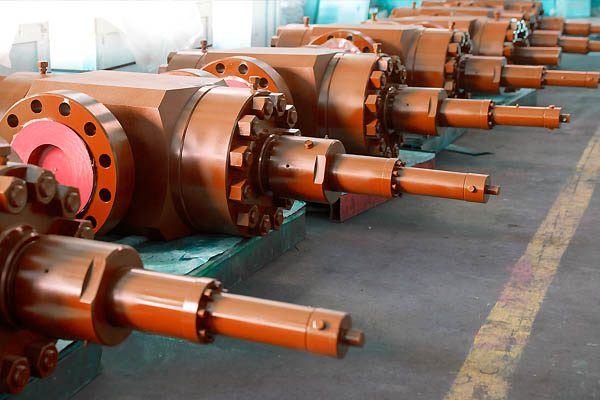

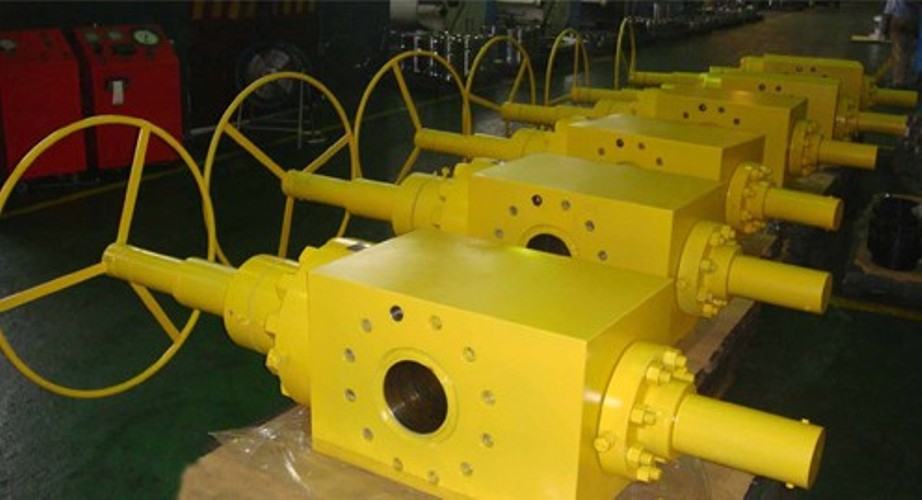

Fracturing gate valve is applied in fracturing project and it is an important part for fracturing equipment. The fracturing gate valve is designed in accordance with performance requirements of API 6A. The fracturing gate valve manufactured by B3 has maximum drift of 7-1/16" and maximum pressure of 20000psi. Fracturing technology adopted by B3 is internationally advanced technology.
End connection: flanged, planted wire type

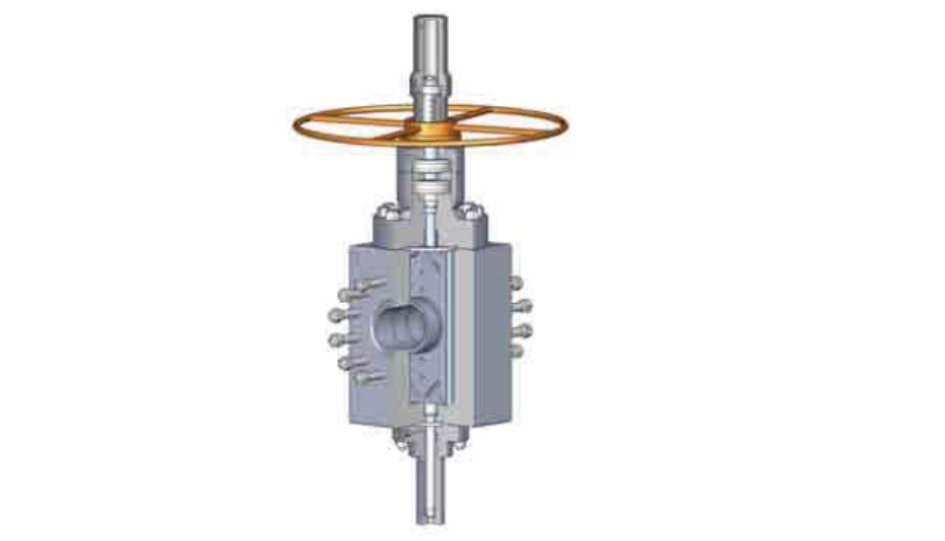

It is designed and manufactured in accordance API 6A with material shall meet the requirements of NACE MR0175; Full bore forged steel type gate valve can be characterized as high pressure resistance, erosion resistance; Body-bonnet and wedge-seat are full metal sealing structure, which is reliable; Seat-seat rings, body-seat rings using high-performance seal ring assisted sealing; Seat- body shall be sealed in assistance oftwo elastic accumulative rings, in this way, low pressure seal can be obtained and surface contamination can be avoid; Ball screwed drive with balance tail rod shall be adopted, which is featured as low torque and convenient operation; Floating seat structure, bi-directional sealing; Valve cap, tail cap and valve stem shall be designed as back seal, which is convenient to replace packing with pressure;
A sealing grease injection valve, easy online maintenance online, improve life.
