API 6A Valves > Casting Slab Gate Valve

● Similar products / Similar product recommendation

Introduction Parameter

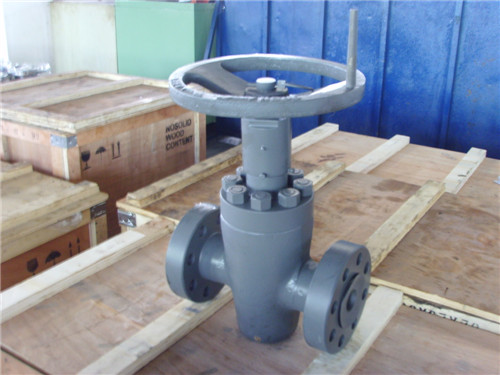

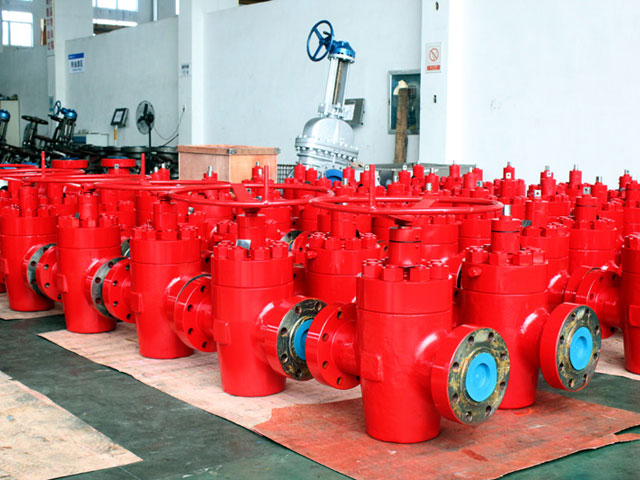

With reliable performance and double direction sealing structure, Casting Slab gate valve can perform well when used in high pressure service condition. In addition, It can be used in oil field wellhead, x-mas tree and manifold system where pressure are in range of 2000psi to 5000psi.

Products Range

Size: 1-13/16" ~ 9"
Working Pressure: 2000 psi ~ 20000psi
Temperature Level: KU
Material Class: AA ~ FF
Specification Level: PSL1 ~ PSL4
Performance Level: PR1 ~ PR2
Design Performance Standards: API 6A

Design Specification
Slab gate valve can meet requirements in standard . The previous expanding wedge is replaced by rigid flat wedge. The medium, H2S material can be used in accordance with the latest NACE MR-0175 specification.

Design Features

casting steel valve body/forged valve bonnet
low operation torque
metal to metal valve body/valve bonnet seal
metal to metal wedge/valve seat seal
add lubricant nozzle to realize maintenance
wedge guidance design can lubricate the wedge and protect the surface of wedge
hydraulic actuator and pneumatic actuator designed to realize automatical operation
simple and reliable structure, low cost

flange or thread connection
