Introduction Parameter

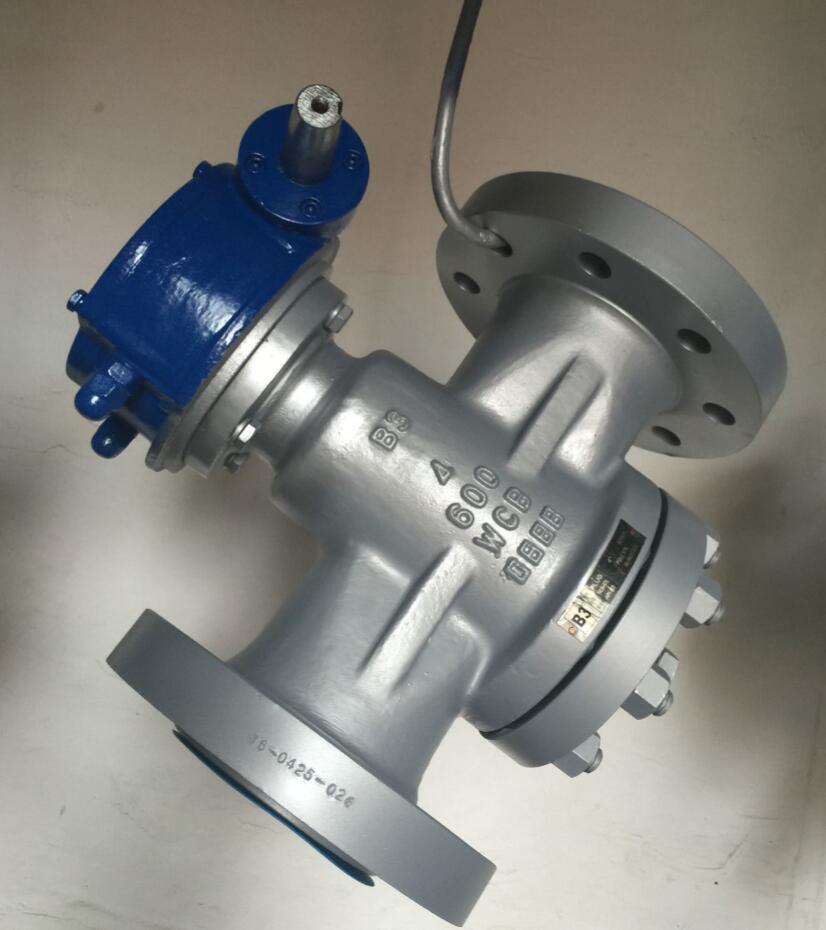

B3 lubricated plug valves are applicable to the cutting and connection of pipelines medium that aroused in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc. It is used under nominal pressure of CLASS150-1500LBS, and works at the temperature of -29~180℃.

Applicable Standard

Design and Manufacture: API 599, API 6D

Face to Face: ANSI B16.10

Flanged Connection: ANSI B16.5

Buttwelding End: ANSI B16.25

Test and Inspection: API 598, API 6D

Products Range

Size:                      1/2" ~ 14" (DN15 ~ DN350)
Rating:                  ANSI 150lb ~ 1500lb
Body Materials:   Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Operation:            Lever, Gear, Electric, Pneumatic, Hydraulic

Design Features

The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
It has the structure of flip-chip balanceable pressure and light on/off operation.
An oil groove is set between valve body and seal surface, which may infuse the seal grease to increase the sea capability.
The materials of the parts and sizes of flanges can be configured reasonably according the actual operation condition the customer required, so as to meet the various needs of engineering.
