Applicable Standard
Design Standard: BS 1868, ASME B16.34, API 6D, DIN2533
Face to Face: ASME B16.10, API 6D, EN 558, DIN 3202
End Flange: ASME B16.5, ASME B16.47, DIN2501, DIN2533
Buttwelding Ends: ASME B16.25, DIN3239
Inspection and Test: API 598, DIN3230
Products Range
Size: 2" ~ 36" (DN50 ~ DN900)
Rating: ANSI 150lb-1500lb
Body Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim: Per API 600
Design Features
Full open design
Bolted cover.

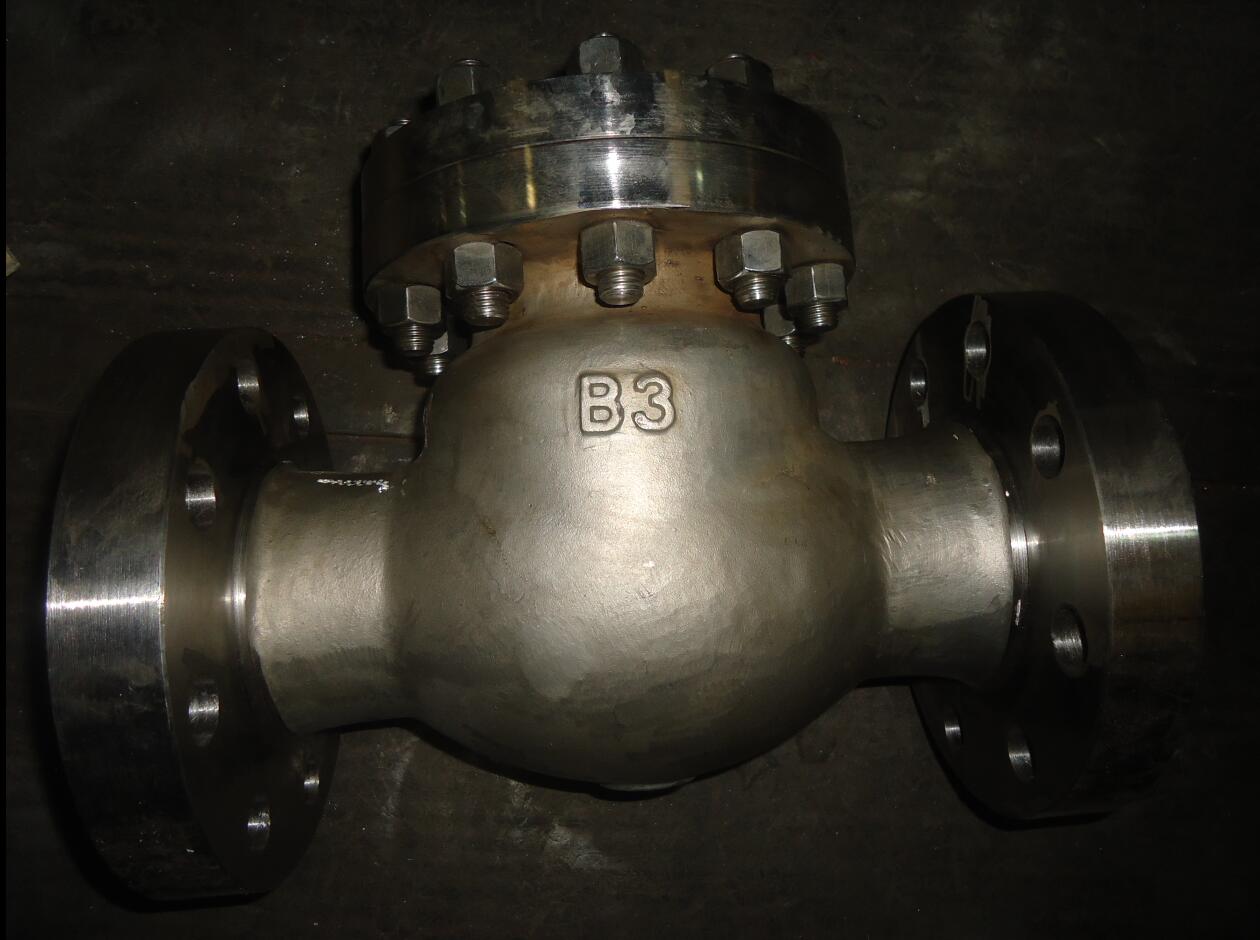

Swing type disc design
Optional buffering damp structure
Renewable or and welded seat
Flanged or buttwelding ends
