Gate Valve > Forged Steel Gate Valve

● Similar products / Similar product recommendation

Introduction Parameter

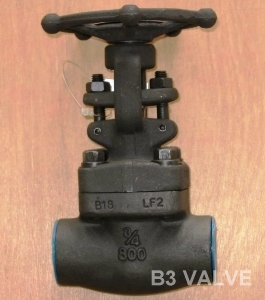

B3 forged steel gate valves are designed and manufactured to provide maximum service life and dependability.Forged gate valves can be full port or reduced port as per requirements of customers. Valves are available in a complete range of body/bonnet materials and trims.

Applicable Standard

Design Standard:          API 602, ASME B16.34, BS 5352, DIN3352
Face to Face:                 ASME B16.10, EN 558, DIN3202
End Flange:                  ASME B16.5, DIN2533
Buttwelding Ends:        ASME B16.25, DIN3239
Socket Welded Ends: ASME B16.11
Threaded Ends:             ASME B1.20.1
Inspection and Test:    API 598, DIN3230

Products Range

Size:                     1/2" ~ 2"(DN15 ~ DN50)
Rating:                 ANSI 150lb ~ 2500lb
Body Materials:      Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim:                     Per API 600
Operation:          Handwheel

Design Features

Solid or wedge gate
Full port or reduced port design
Bolted bonnet, welded bonnet, or pressure sealed bonnet
Flanged, butt-welded, socket welded, or threaded ends
